UNITED STATES FORESTRY SYSTEMS

Logging and forestry systems commonly used in the United States

USA Long and Short Logger Systems

Benefits:
•  Haul Maximum legal loads every time
•  Reduce loading and adjustment time
•  Eliminate overweight fines
•  Reduce maintenance costs and increase vehicle life
•  Increase safety

Features:
•  Robust design for high safety factor
•  Retain their strength when installed on suspension systems
•  Offer typical accuracy within 1% of applied load
•  Have triple-redundant sealing for durability and long life
•  Field proven for more than 30 years

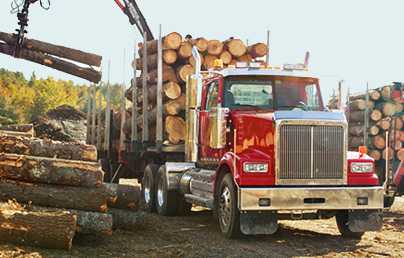

USA Short Logger truck image

Products

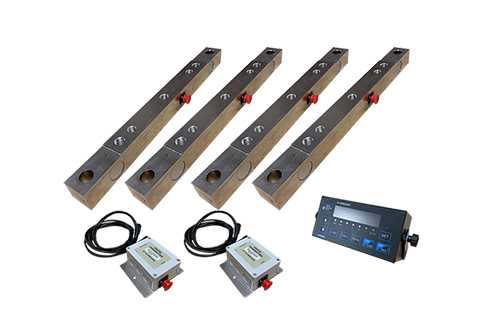

USA Long Logger System image

Long Logger System - 9100910

Extremely durable and designed for the harshest environments. Our Titan II load cells are designed specifically for on-board scales. They are temperature compensated  and use a triple-redundant sealing process.

>View Spec Sheet

Options:
9100910-01 - Long Logger System With 2 Channel 9100 GW Meter
9100910-02 - Long Logger System With 4 Channel 9100 QC Meter
9100915 - Long Logger System With 4 Channel 9100 QC Meter
9100760-01 - Long Logger System Trailer Only (no Meter)
9100910-71 - Long Logger 9150 System

USA Short Logger System image

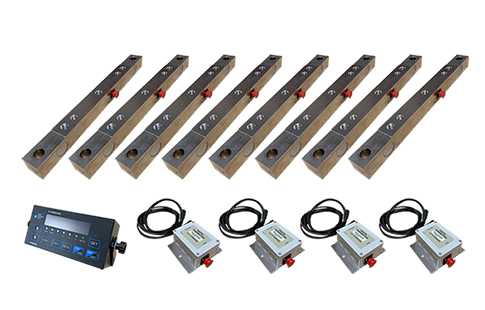

Short Logger System - 9101170

Designed for eight bunk log trucks. Provides gross or net weight for trucks and/or trailers. We utilize double-gaged steel shear-beam load cells. The easy-to-install and operate systems consist of load cells and their associated bearing plates which are mounted to support the load. Add an in-cab meter, truck and trailer-mounted signal transmitters with the necessary wiring and you are ready to roll.

>View Spec Sheet

Options:
9101770 - Short Logger System with 4 Ch 9100 QC Meter
9101170-50 Short Logger 9150 System

USA Fifth Wheel Tractor Systems

Our fifth wheel logging systems are designed to fit under Holland, Fontaine, Simplex or JOST fifth wheel plates, replacing the standard riser or slider brackets. The load cell provides immediate weight information without substantially adding to the trailer height or tractor weight.

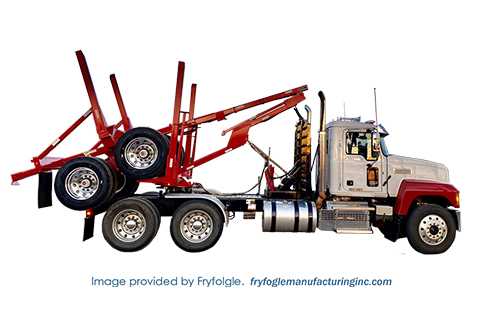

USA Fryfogle fifth wheel image
USA fontaine system image

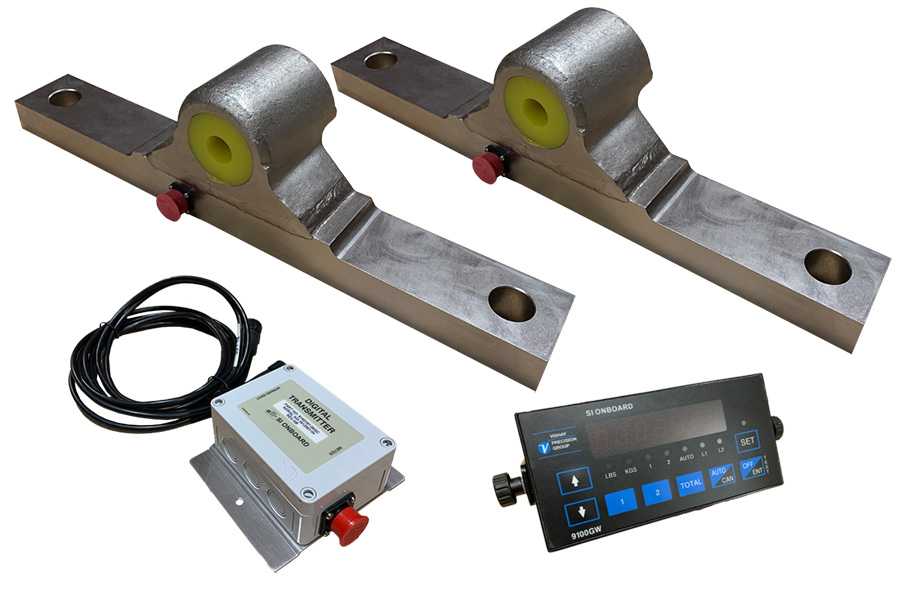

Holland Fixed Fifth Wheel System (Tractor Only) - 9101485

The Holland fifth wheel system increases profits for haulers. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation.

>View Spec Sheet

Options:
9101485-50 Holland Fixed 9150 System

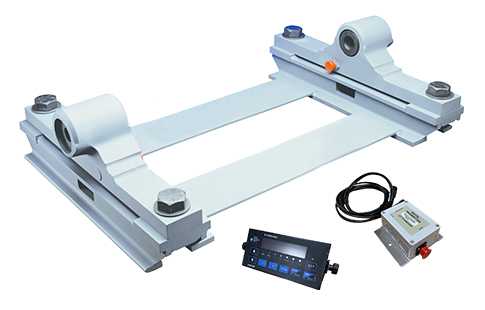

USA Holland slider image

Holland Slider Fifth Wheel Slider (Tractor Only) - 9100460

The Holland fifth wheel slider system offers flexibility of a fifth wheel slider combined with the accuracy of direct weighing. Don’t leave your profits in the woods.

>View Spec Sheet

USA Holland ILS image

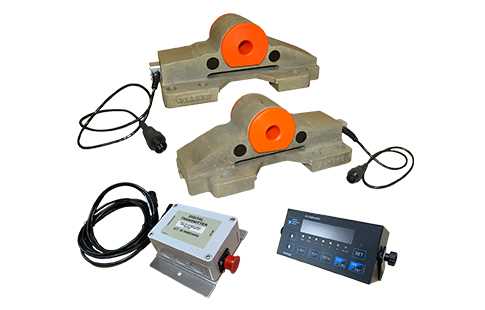

Holland ILS Slider, Cast Load Cell Weighing System (Tractor Only) – 9100500

The Holland ILS cast load cell is ideal for ease of installation with no welding required. Simply remove the existing brackets and replace with the ILS load cell. Great performance without increasing the fifth wheel height.

>View Spec Sheet

Options:
Technical Bulletin - B-148 Holland ILS Slider
Easy as 1-2-3 Install Brochure

USA Holland Fixed Fifth Wheel

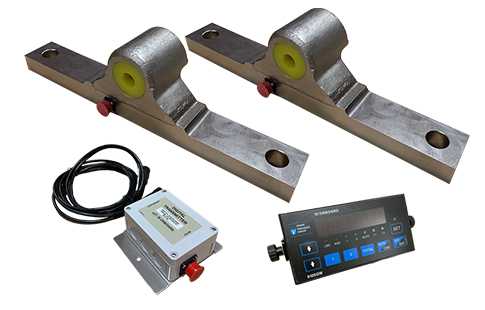

Holland Heavy-Duty Fixed Fifth Wheel System (Tractor Only) – 9100600

Designed for fixed fifth wheel Holland FW70 top plates. This fifth wheel solution offers direct weighing for heavy payloads.

Options:
Technical Bulletin - B-152 Holland Heavy Duty

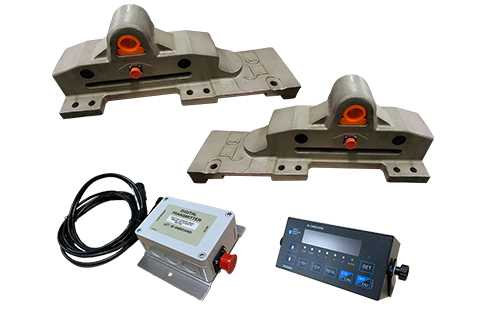

USA Holland Severe Duty

Holland Severe Duty System - 9100600

Designed specifically for the Holland Severe-Duty ILS slider system with an FW70 series top plate. This system is a direct replacement for the existing Holland slide brackets and will fit on both the inboard and outboard style slide tracks. The load cells provide real time weight information.

Options:
Technical Bulletin - B-153 Holland Severe Duty ILS Slider

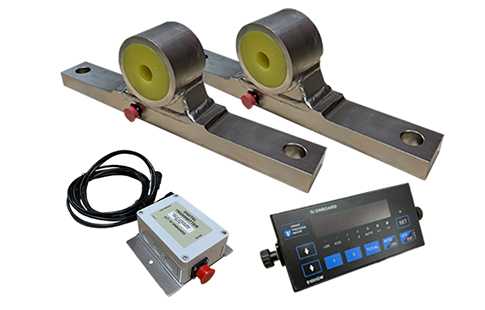

USA fontaine system image

Fontaine Fifth Wheel System - 9101495

The Fontaine Fifth Wheel System increases profits for haulers. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation.

>View Technical Bulletin

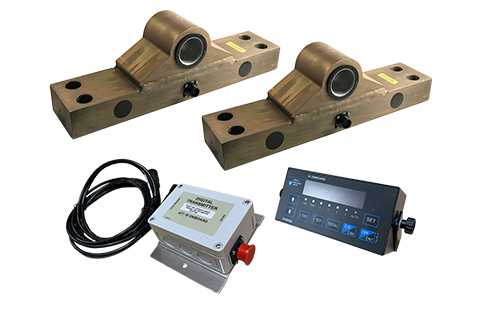

USA JOST system image

JOST Fifth Wheel - G-250J

The JOST Fifth Wheel System increases profits for haulers. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation.

>View Technical Bulletin

USA OnBoard Trailer Weighing Systems for Forestry

Our Fifth wheel trailer systems commonly used in the United States. We offer weighing solutions for most logging fifth wheel trailers.

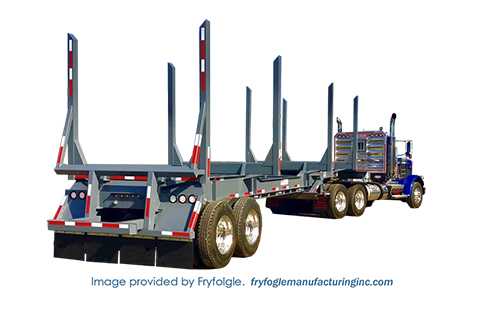

USA Fryfogle tractor trailer image

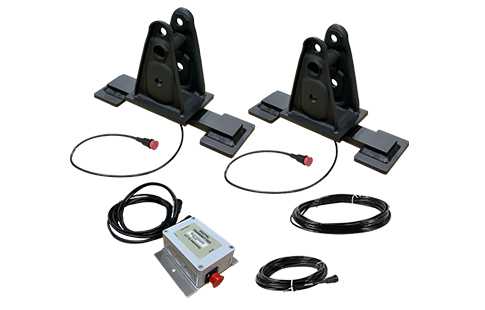

USA Hutch Center pt image

Center Hanger / Hutch System -9300305

The Center Hanger/Leaf Spring On-board system provides accurate (net and gross) weight information for a variety of hauling applications. The system provides years of trouble free operation. The system is designed for use with tandem, tridem and quad axle groupings.

>View Spec Sheet

USA Single Point Sys image

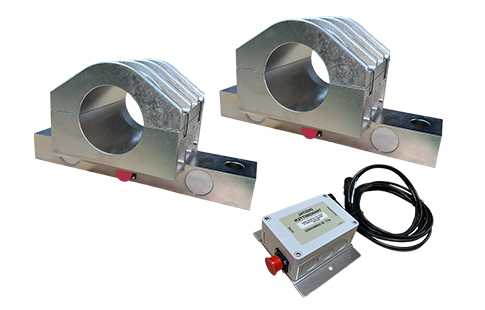

Single Point Trailer System - 9301025

The Single Point On-board system provides gross or net vehicle weight for your trailer. The Single Point load cell system provides accurate vehicle weight information for a variety of hauling applications. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation. The system is designed for use with all single point trailer suspensions utilizing a 4” trunnion shaft.

>View Spec Sheet



USA air scale system image

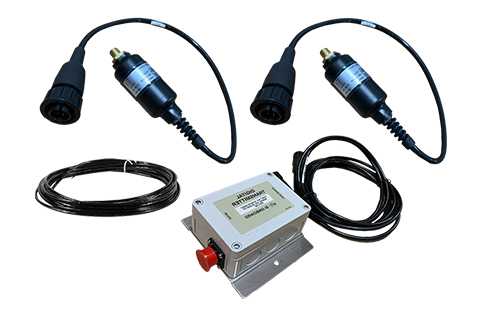

Air Scale System - 9101310

The SI Onboard Air scale system provides gross or net vehicle weight by monitoring air pressure from your air suspension and converting this to a weight. This information is used in avoiding overload fines, choosing disposal sites, and reducing truck maintenance. The system can be installed on any truck with an air suspension. Axle group weights are provided, as well as gross and net weights. Rear-axle-group-only and front-axle-group-only systems are also available. The system is designed for easy operation and is built for accuracy, reliability and longevity.

>View Spec Sheet

Options:
9101310-10 - AS1030 - Air Scale, 2 Channel, Tractor Only

9101310-10QC - AS1030 Air Scale, 4 Channel, Tractor Only
9300870-10 - AS1010 Air Scale, Trailer Only (no-meter)
9300880-01 - Dual Leveling Valve Air Sensor Adapter Kit

>View Spec Sheet  9101310-50 - 9150 - Air Scale TRK Single LVL Valve Kit
>View Spec Sheet  9101325-50 - 9150 - Air Scale, Trk 2 LVL, Trl 1 LVL
>View Spec Sheet  9101326-50 - 9150 - Air Scale, Trk 2 LVL Trl 1 LVL Pup 1 LVL

We rely on our SI On-Board Scales every trip to ensure that we maximize our loads.

Jake ThompsonTTT Timber, Inc.

We use SI On-Board Scales on our fleet of log trucks. Whether our trucks are running off road in harsh conditions or over the highway, the SI scales consistently provide accurate readings. We rely on our SI scales every trip to ensure that we maximize our loads. The majority of our haul routes pay by the ton so it is critical for us to maximize our revenue. Our SI On-Board Scales are very accurate, and our confidence in them has been proven through years of use. We have been pleased with how easy the scales are to use and adjust, and with their longevity in rugged conditions.
