CANADIAN FORESTRY SYSTEMS

Logging and forestry systems commonly used throughout Canada

Canadian Long and Short Logger Systems

Benefits:

  • Haul Maximum legal loads every time
  • Reduce loading and adjustment time
  • Eliminate overweight fines
  • Reduce maintenance costs and increase vehicle life
  • Increase safety

Features:

  • Robust design for high safety factor
  • Retain their strength when installed on suspension systems
  • Offer typical accuracy within 1% of applied load
  • Have triple-redundant sealing for durability and long life
  • Field proven for more than 30 years
Canadian forestry image

Products

Long Logger System image

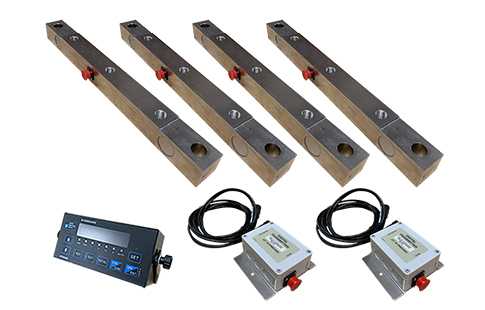

Long Logger System - 9100595

Extremely durable and designed for the harshest environments. Our standard duty 26" load cells are designed specifically for on-board scales. They are temperature compensated and use a triple-redundant sealing process.

>View Spec Sheet

Options:
9100595 - Long Logger with 26" 8300755-15R Shear Beams
9101200 - Tractor Only Long Logger with 26" 8300755-15R Shear Beams
9300800 - Trailer Only Long Logger with 26" 8300755-15R Shear Beams

Titan Long Logger System image

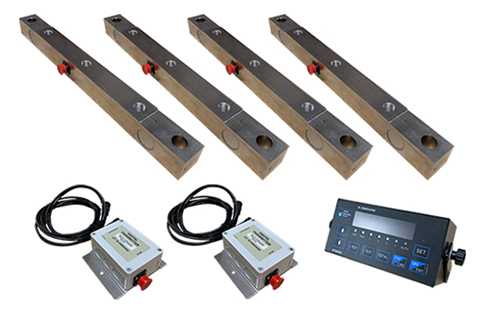

Titan Heavy Duty Long Logger System - 9102310-01

Heavy-duty long logger system with 80,000 lb. static capacity provides gross or net weight for truck and/or trailers. The system utilizes double- gaged steel shear-beam Titan II load cells. System comprised of four SI heavy duty load cells, associated wiring and 9100 meter in cab display.

Options:
9102310-01 - Heavy Duty with 28" 8301900-10R Shear Beams
9102330 - Tractor Only  System with 28" 8301900-10R Shear Beams
9301080 - Trailer Only  System with 28" 8301900-10R Shear Beams

KIWI Short Logger System image

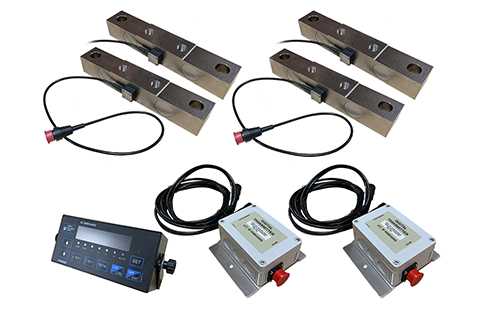

KIWI Short Logger System - 9100615

The SI On-Board KIWI Short Logger Tractor Scale uses proven technology to give you the reliability and accuracy you expect.  SI On-board’s 14.5” KIWI load cells are the established and proven standard for excellence in the logging industry.

>View Spec Sheet

Options:
9100610 - Tractor Only Short Logger using 8300890-13R Shear Beams
9100615 - Trailer Only Short Logger using 8300890-13R Shear Beams

Canadian Fifth Wheel Tractor Systems

Our Fifth Wheel Logging Systems are designed to fit under Holland, Fontaine, Simplex or JOST fifth wheel plates, replacing the standard riser or slider brackets. The load cell provides immediate weight information without substantially adding to the trailer height or tractor weight. Our CAST Fifth Wheel Systems act as a direct replacement for both the standard and heavy duty Holland Fifth Wheels.

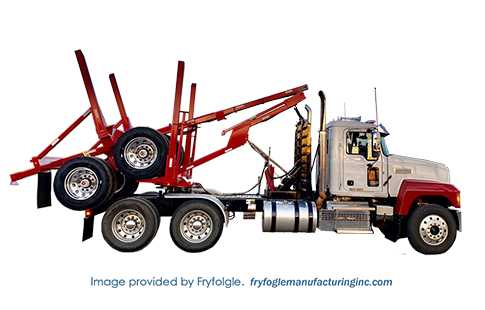

Canada Fryfogle fifth wheel image

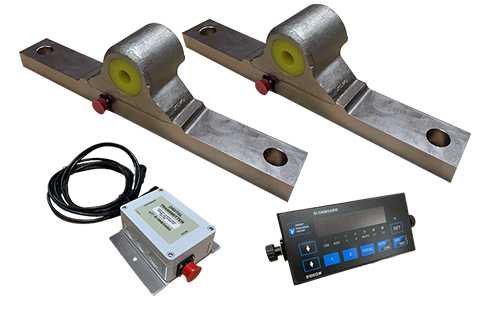

Canada Holland Fixed Fifth Wheel  System image

Holland Fixed Fifth Wheel  System (Tractor Only) - 9101485

SI Onboard offers various 5th wheel solutions, including Holland Fixed or Slide, Fontaine or Simplex. The systems increase profits for haulers. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation.

>View Spec Sheet

Options:
9101485-70 - 9150 Holland Fixed 5th Wheel System - Tractor Only
Technical Bulletin - Holland Fixed Fifth Wheel

Canada Holland Fifth Wheel Slider System image

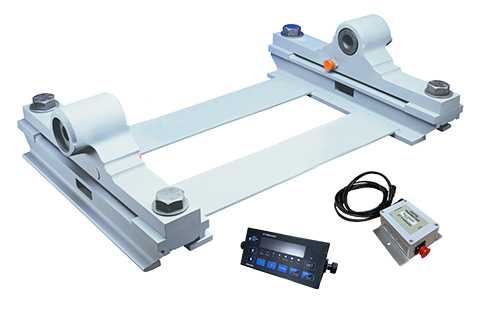

Holland Fifth Wheel Slider System - 9100460

The Holland Fifth Wheel Slider System increases profits for haulers. The flexibility of a Fifth Wheel Slider combined with the accuracy of direct weighing. Don’t leave your profits in the woods.

Options:
9100460C - 9100 Holland 5th wheel slider system
Technical Bulletin - Holland Fifth Wheel Slider

Canada B-Train Logger image

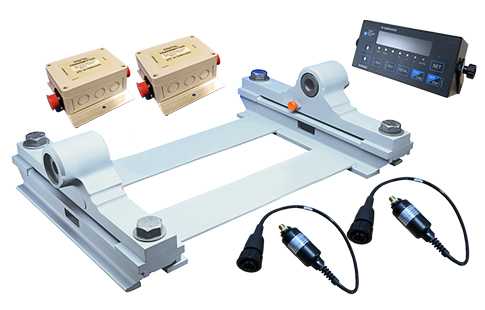

B-Train Logger - 9100335

The B train system utilizing fifth wheel load cells for the truck and “airscale” systems for the lead and pup trailers. 5th wheel systems may vary so contact your local SI dealer for more information.

>View Spec Sheet

Canada Hayrack Logger image

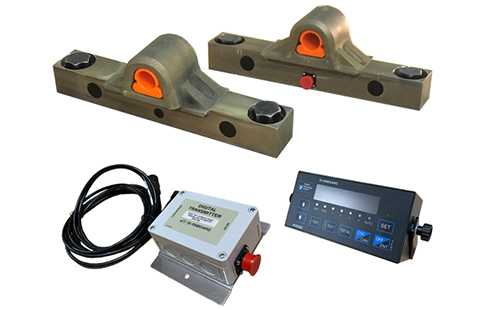

Hayrack Logger - 9102345

The Hayrack Holland slider tractor/trailer system uses proven technology to give you the reliability and accuracy you expect. SI On-board’s fifth wheel load cells along with our proven air transducers are the established and proven standard for excellence in the logging industry.

>View Spec Sheet

Canada Holland ILS Slider System image

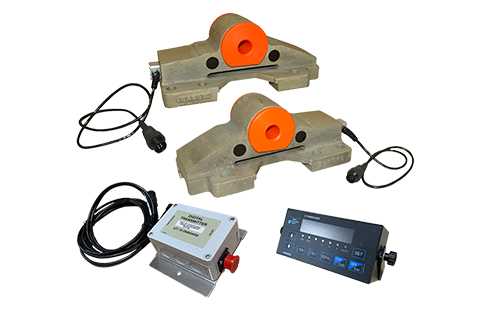

Holland ILS Slider System - 9100500

The Holland ILS Cast Load Cell is ideal for ease of installation with no welding required. Simply remove the existing brackets and replace with the ILS Load Cell. Great Performance without increasing the Fifth Wheel height.

>View Spec Sheet

Options:
Technical Bulletin - B-148 Holland ILS Slider
Easy as 1-2-3 Install Brochure

Canada Holland Heavy Duty System image

Holland Heavy Duty System - 9100600

Designed for Fixed Fifth Wheel Holland FW70 Top Plates, the L75 Fifth Wheel Solution offers direct weighing for heavy payloads.

Options:
Technical Bulletin - B-152 Holland Heavy Duty

Canada Holland Severe Duty System image

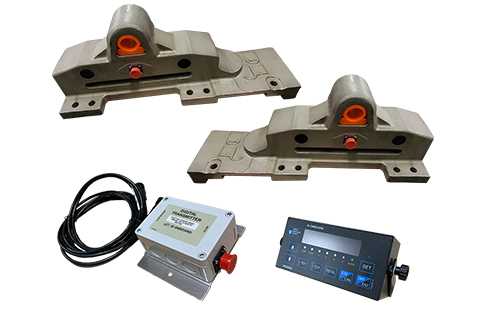

Holland Severe Duty System - 9100650

Designed specifically for the Holland Severe-Duty ILS slider system with an FW70 series top plate. This system is a direct replacement for the existing Holland slide brackets and will fit on both the inboard and outboard style slide tracks. The load cells provide real time weight information.

Options:
Technical Bulletin - B-153 Holland Severe Duty ILS Slider

Canada Fontaine Fifth Wheel System image

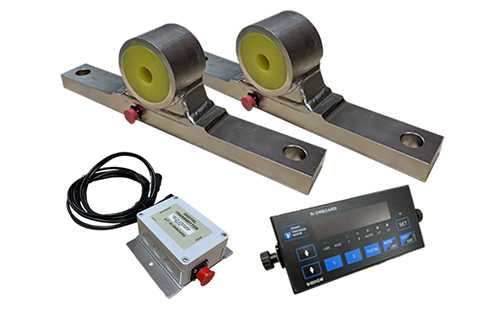

Fontaine Fifth Wheel System - 9101495

The Fontaine Fifth Wheel System increases profits for haulers. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation.

Options:
9101495-70 - 9150 Fontaine Fixed 5th Wheel System - Tractor Only
Technical Bulletin - Fontaine Fifth Wheel

Canada JOST Fifth Wheel image

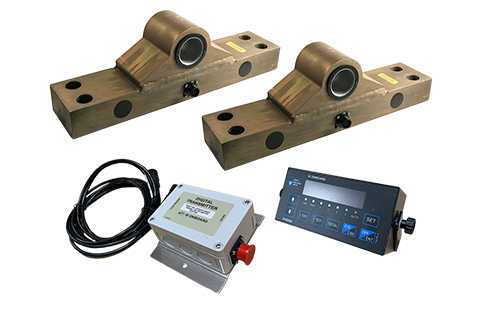

JOST Fifth Wheel - 96100550

The JOST Fifth Wheel System increases profits for haulers. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation.

Options:
Technical Bulletin - JOST Fifth Wheel

Canada OnBoard Trailer Weighing Systems

Our Fifth wheel trailer systems commonly used in the United States. We offer weighing solutions for most logging fifth wheel trailers.

Canada Fryfogle tractor trailer image
Canada Hutch Center pt system image

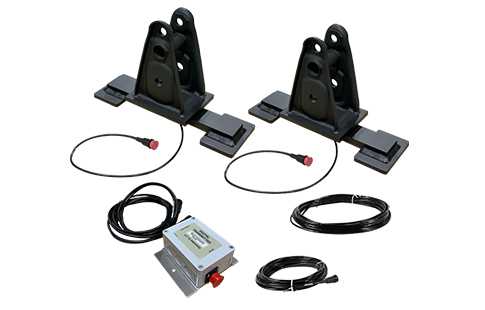

Center Hanger / Hutch System -9300305

The Center Hanger/Leaf Spring On-board system provides accurate (net and gross) weight information for a variety of hauling applications. The system provides years of trouble free operation. The system is designed for use with tandem, tridem and quad axle groupings.

>View Spec Sheet

Options:
9300600 - Tridem 6 Spring System

Canada Single Point Trailer System image

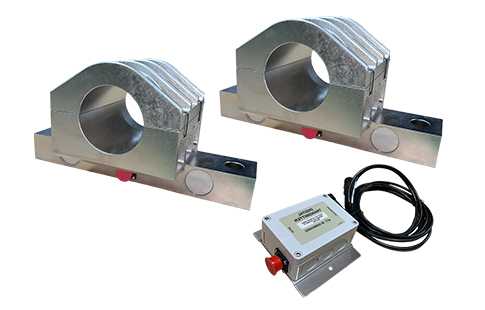

Single Point Trailer System - 9301025

The Single Point On-board system provides gross or net vehicle weight for your trailer. The Single Point load cell system provides accurate vehicle weight information for a variety of hauling applications. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation. The system is designed for use with all single point trailer suspensions utilizing a 4” trunnion shaft.

>View Spec Sheet

Options:
93001025Q - Single Point/Trunnion System for Quad Trailers

Canada Air Scale System image

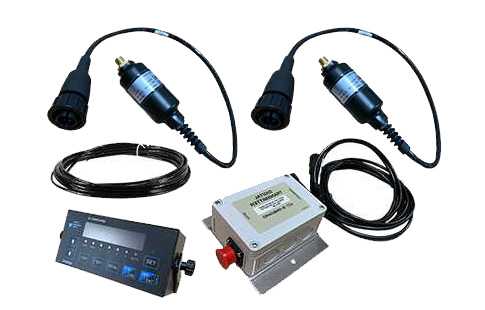

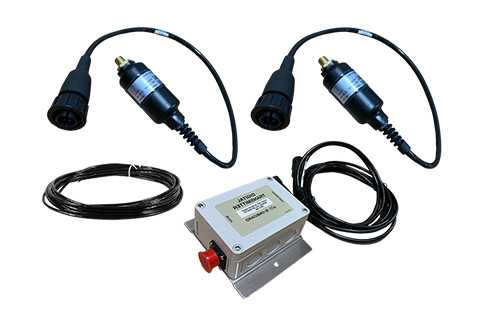

Air Scale System - 9101310

The SI Onboard Air scale system provides gross or net vehicle weight by monitoring air pressure from your air suspension and converting this to a weight. This information is used in avoiding overload fines, choosing disposal sites, and reducing truck maintenance. The system can be installed on any truck with an air suspension. Axle group weights are provided, as well as gross and net weights. Rear-axle-group-only and front-axle-group-only systems are also available. The system is designed for easy operation and is built for accuracy, reliability and longevity.

>View Spec Sheet

Options:
9101310-10 – AS1030 Air Scale, 2 Channel, Tractor Only
9101310-QC – AS1030 Air Scale, 4 Channel, Tractor Only
9300870-10 – AS1010 Air Scale, Trailer Only (no-meter)
9300880-01 – Dual Leveling Valve Air Sensor Adapter Kit
