REFUSE

S.I. On-Board offers the widest range of Weighing Solutions for your vehicles. We offer Front, Side and Rear Loader Solutions ranging from our most robust and accurate, load cell systems to route management transducers, overload and air systems.

We have a flexible line-up with solutions for Roll-Off, Transfer and Dump Truck Systems along with Loader Scales offered in a wide-range of electronics.





FRONT FORK / REAR LOADER / ROLL-OFF / TRANSFER TRUCK SYSTEMS

Refuse Front Fork System image

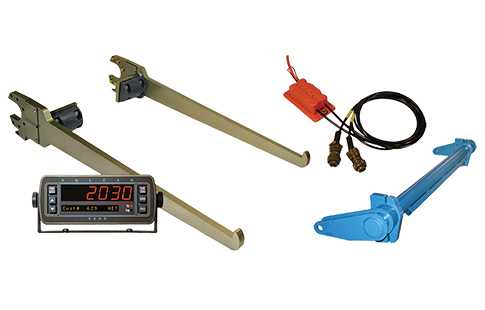

Front Fork System – R506

S.I. On-board, through its sister brand Vulcan Scales offers a Front Fork Scale designed for front loaders in refuse applications. The rugged, bolt-on weight sensing forks replace the trucks existing forks or can be purchased with a scale ready cross tube assembly. Machined from a solid bar of high strength alloy steel and plated for corrosion protection, the light weight fork scales have a negligible impact on the trucks weight.

>View Spec Sheet

Options:
R506 - Manual Front Fork Scale System (3.5”,4” and 4.5” cross-tubes)
R516 - Weigh-In-Motion/Static Front Fork (3.5”,4” and 4.5” cross- tubes)
Front Fork Scale - Installation and Service Manual

Refuse six point system image

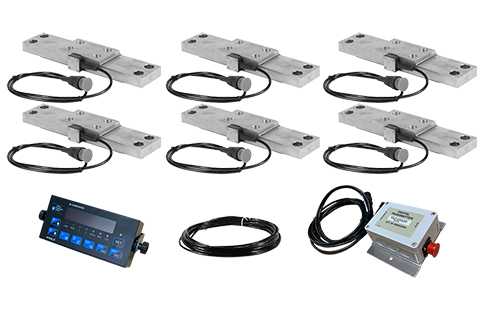

Fixed Six Point Scale System - 9101050

The S.I. On-Board Body Scale system uses 13” side connector shear beam load cells for both tipping (bodies that tip to dump and tip for service) and fixed (bodies that are fix mounted and do not tip for service) refuse applications. Typically four to six load cells are used depending on your specific application.

>View Spec Sheet

Options:
9101050-01 - 6 Point 9150 Fixed Body Mount Sys/ McNeilus, Wittke
9101785-10 - Four Point Body Scale 4 lead transmitter
9150 - Meter Load Cell Based Systems

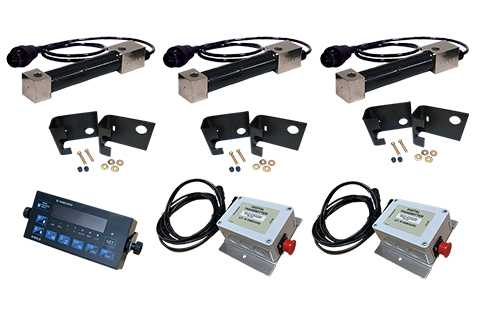

Refuse deflection transducer system

Deflection Transducer Scale System

The S.I. On-Board Deflection Transducer Scale System uses either the standard deflection transducer, the neutral axis deflection transducer or both. The deflection transducer combination is based on the suspension used in the specific vehicle being scaled. The deflection transducer scale system is a lower cost alternative for those applications needing to maximize the vehicle load without the higher accuracy of load cells. A variety of kits are available for different configurations, suspensions, or axle group weights.

>View Spec Sheet

Options:
9100630-01 - 3 Trans. Front Axle & Walking Beam (Chalmers/Hendrickson)
9100660 - 2 Trans. Front & Rear for Mack Camelback (9100GW)
9100660-01 - 2 Trans. Front and Rear for Mack Camelback (9100LD)
9100750-02 - Neutral Axis Beam and Tandem Beam with 9100 LD Meter
9100125-C - 2 Trans system for walking beams
9100630-04 - 4 Transducer system
9100630-05 - Single Point Front Axle Transducer System
9150 - Deflection Transducer Systems

Refuse Shear Pin montage image

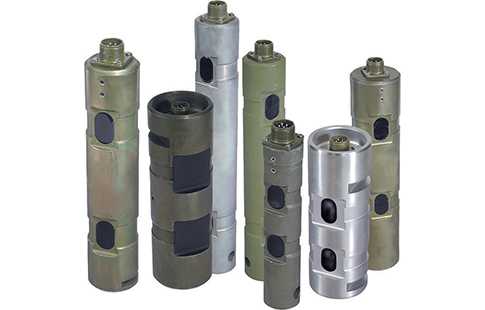

On-Board Roll-Off Scale System

The S.I. On-Board Roll-Off Scale for the 2 ½” and 3” rear hinge pin designs use proven technology to give you the reliability and accuracy you expect. The VSL Hydraulic Sensor combines our transmitter and sensor into a single stainless steel housing and obtains weight be measuring hoist cylinder pressure. The shear pin load cells replace the existing shear pins and measure weight in the rear assembly. For low hinge configurations a 26” shear beam is used. Optional retaining collars allow adapting to different roll-off configurations. Easy to operate electronics provide total weight of the container or axle weights to the driver in the cab.

>View Brochure

Options:
Roll-Off Brochure (Use Hydraulic Pressure Sensor picture and Shear Pin load cell picture from roll-off section of Vulcan Refuse Solutions Brochure).

  • R313 – 2 ½” Rear Hinge Pins without mounting kit (Galbreath, Accurate, Galfab)
  • R323 – 2 ½” Rear Hinge Pins with mounting kit (Drago, Rudco, McClain hoists)
  • R343 - 3” Rear Hinge Pins without mounting kit (K-Pac hoists)
  • R353Low Hinge Roll-Off System (G & H hoists, Benlee hoists, Dunright hoists, Roll-off USA hoists)
  • R363 – American Roll-Off Hoist System

Fifth Wheel Tractor Systems For Refuse

We offer the broadest selection of fifth wheel options. Designed to fit under Holland, Fontaine, Simplex or JOST fifth wheel plates, replacing the standard riser or slider brackets. The load cell provides immediate weight information without substantially adding to the trailer height or tractor weight.

Our CAST Fifth Wheel Systems act as a direct replacement for both the standard and heavy duty Holland Fifth Wheels.

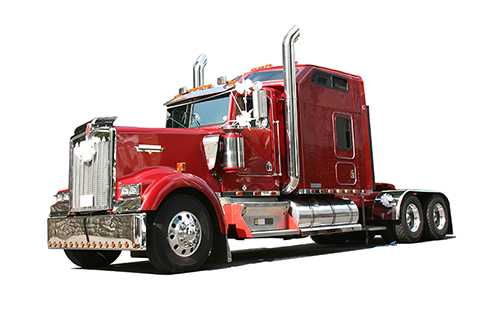

Refuse red truck image
Refuse fontaine system image

Holland Fixed Fifth Wheel System (Tractor Only) - 9101485

The Holland fifth wheel system increases profits for haulers. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation.

>View Spec Sheet

Options:
9101485-50 Holland Fixed 9150 System

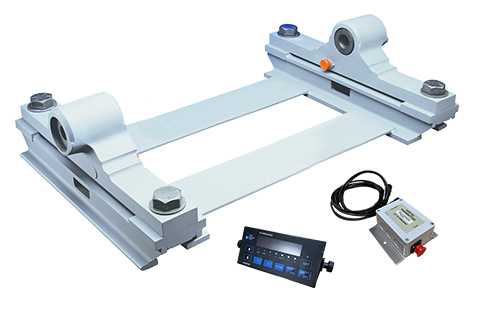

Refuse Holland slider image

Holland Slider Fifth Wheel Slider (Tractor Only) - 9100460

The Holland fifth wheel slider system offers flexibility of a fifth wheel slider combined with the accuracy of direct weighing. Don’t leave your profits in the woods.

>View Spec Sheet

Options:
Technical Bulletin - Holland Fifth Wheel Slider

Refuse Holland ILS image

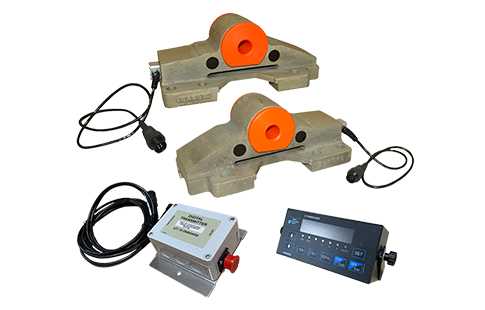

Holland ILS Slider, Cast Load Cell Weighing System (Tractor Only) - 9100500

The Holland ILS cast load cell is ideal for ease of installation with no welding required. Simply remove the existing brackets and replace with the ILS load cell. Great performance without increasing the fifth wheel height.

>View Spec Sheet

Options:
Technical Bulletin - B-148 Holland ILS Slider
Easy as 1-2-3 Brochure - Easy 1-2-3 Install brochure

Holland Heavy Duty image

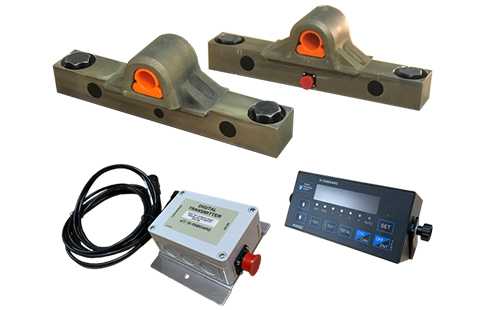

Holland Heavy Duty Fixed Fifth Wheel System (Tractor Only) - 9100600

Designed for fixed fifth wheel Holland FW70 top plates. This fifth wheel solution offers direct weighing for heavy payloads.

>View Tech Bulletin

Options:
Technical Bulletin - B-152 Holland Heavy Duty

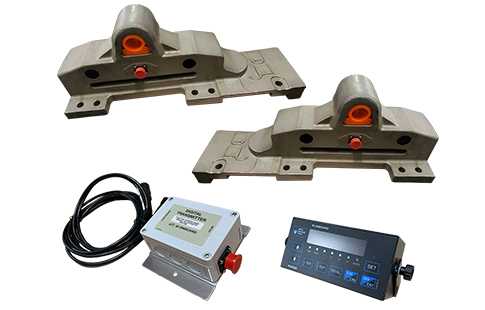

Refuse Holland Severe Duty image

Holland Severe Duty ILS Slider Cast Fifth Wheel System (Tractor Only) - 9100650

The Holland Severe Duty ILS Cast Load Cell is designed for heavy haul vehicles. This system is ideal for ease of installation with no welding required. Simply remove the existing brackets and replace with the

ILS Load Cell. Great Performance without increasing the Fifth Wheel height.

>View Spec Sheet

Options:
Technical Bulletin - B-153 Holland Severe Duty ILS Slider

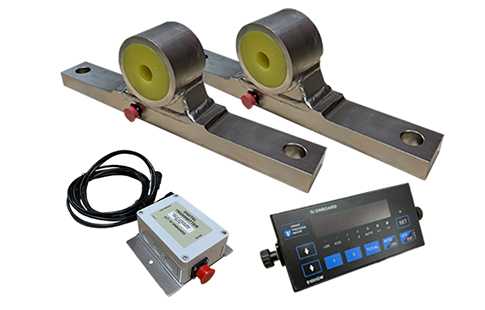

Refuse fontaine system image

Fontaine Fifth Wheel System (Tractor Only) - 9101495

The Fontaine Fifth Wheel System increases profits for haulers. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation.

>View Spec Sheet

Options:
Technical Bulletin - Fontaine Fifth Wheel

Refuse JOST system image

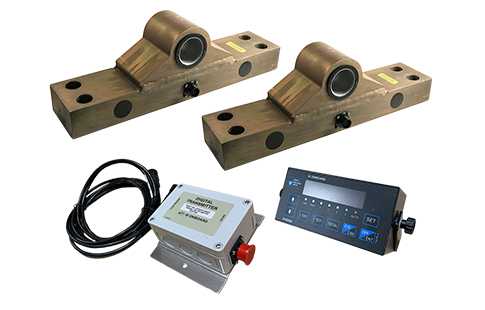

JOST Fifth Wheel System (Tractor Only) - 9100550

The JOST Fifth Wheel System increases profits for haulers. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation.

>View Tech Bulletin

Options:
Technical Bulletin - JOST Fifth Wheel

On-Board Trailer Weighing Systems for Refuse

Our Load Cell Based Trailer Systems set the standard. Available through most trailer manufacturers. Stay Safe, Stay Legal and Optimize your Load!

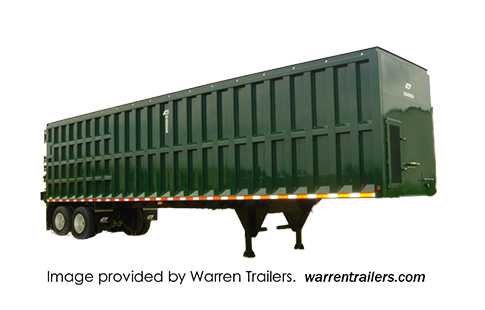

Refuse Warren trailer Ejector image

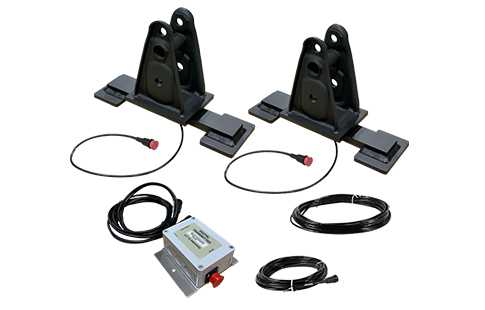

Refuse Hutch Center pt system

Hutch 9700, Dual Axle Weighing System (Trailer Only) – 9300305-02

The Center Hanger/Leaf Spring On-board system provides accurate (net and gross) weight information for a variety of hauling applications. The system provides years of trouble free operation. The system is designed for use with tandem, tridem and quad axle groupings.

>View Spec Sheet

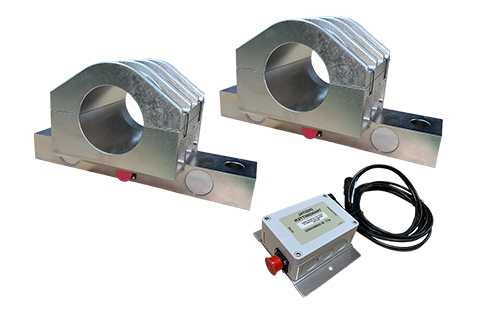

Refuse Single Point System image

Single Point Trailer System - 9301025

The Single Point On-board system provides gross or net vehicle weight for your trailer. The Single Point load cell system provides accurate vehicle weight information for a variety of hauling applications. Designed for both OEM and retrofit installations, the system is easy to install and provides years of trouble free operation. The system is designed for use with all single point trailer suspensions utilizing a 4” trunnion shaft.

>View Spec Sheet

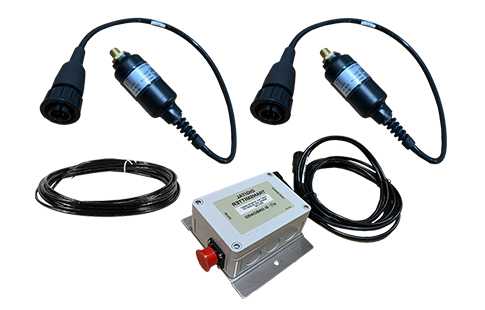

Air scale image

Air Scale System - 9101310

The SI Onboard Air scale system provides gross or net vehicle weight by monitoring air pressure from your air suspension and converting this to a weight. This information is used in avoiding overload fines, choosing disposal sites, and reducing truck maintenance. The system can be installed on any truck with an air suspension. Axle group weights are provided, as well as gross and net weights. Rear-axle-group-only and front-axle-group-only systems are also available. The system is designed for easy operation and is built for accuracy, reliability and longevity.

>View Spec Sheet

Options:
9101330-10 - Air Scale Tractor and Trailer System with 9100 GW Meter
9101310-10 - Air Scale, Two Channel with 9100 W Meter, Tractor Only
9101310-10QC - Air Scale, Four Channel with 9100QC Meter, Tractor Only
9100620 - Air Scale, Dual Air Suspension Trailer Only
9300870-10 - Air Scale, Trailer Only (No Meter)
9300880-01 - Dual Leveling Valve Air Sensor Adapter Kit Tractor or Trailer

Tuffer hydraulics sandwich block image

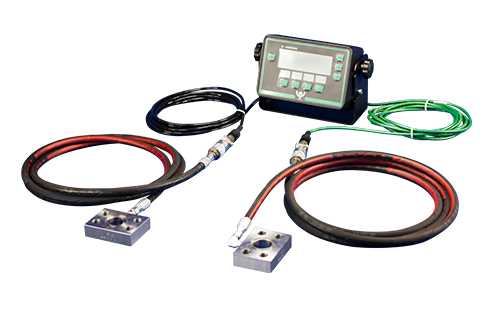

TUFFER Front Loader Scale Solutions for the Refuse Industry

TUFFER Weigh In Motion Loader Scales will provide the information needed to load maximum weights faster, and keep trucks moving without going to a central scale location. This means you get increased productivity on every load, every day. On-Board scales make it faster to load accurate weights every time and Tuffer is designed to do the job and survive the rugged environments found in refuse environments.

>View Brochure
